Case TR310 Compact Track Loader

Manufacturer: Case
Model: Case TR310 Compact Track Loader
Engine : FPT
Engine Power : 74hp
Weight: 4027kg
Height 2.00m
Width 1.88m
Tipping Load 2810kg
Lifting Load 984kg

The medium frame, 1406kg operating capacity Case TR310 radial lift compact track loader provides a reliable, economic and productive track loader. Built in the USA and powered with a 74hp FPT engine, the TR310 is designed around productivity, providing a higher rate of return on investment in less time than our competitors.

The Case TR310 compact track loader has the widest cab in the industry providing a comfortable working environment for the operator, outstanding fuel efficiency and a large fuel tank that makes all day running a possibility.

OPERATOR COMFORT

The cab on the Case TR310 Compact track loader is the largest in the industry with up to 25% more internal width! Combined with a suspension seat as standard, greater headroom, and more space between the control levers, the TR310 Compact track loader offers a comfortable and safe working environment.

The TR310 also benefits from a large glazed surface with ultra-narrow wire side screens, the lowered threshold and thinner front pillars provide the best visibility in the market.

With comfort comes productivity, and with the CASE patented ‘Ride Control’ this is evident. This system incorporates a shock absorber which reduces the loader arm bouncing at elevated speed for greater material retention. This feature will allow the TR310 to move more material, quicker, providing increased productivity.

CONTROL AT YOUR FINGERTIPS

The TR310 comes as standard with the Case CUP (Connect under Pressure) system to plug hydraulic hoses without the need of wrenches. Three different auxiliary hydraulic packages are offered:

Standard Flow Package – The standard system operates the majority of available hydraulic attachments, and the proportional control provides a precise control.

High Flow Package – Up to 55% more flow with this package, allowing operation of cold planers, rock wheels or large hammers. Package level 4 and 5 include a 14 pin front electric system to handle multiple movements of the attachment directly form the joysticks.

Enhanced High Flow Package – This package (level 7) is designed for extreme applications such as large cold planers and mulchers.

The CASE TR310 Compact track loader also comes with either the standard mechanical hand drive levers, mechanical foot drive pedals, or alternatively electro-hydraulic controls.

EASY MAINTENANCE

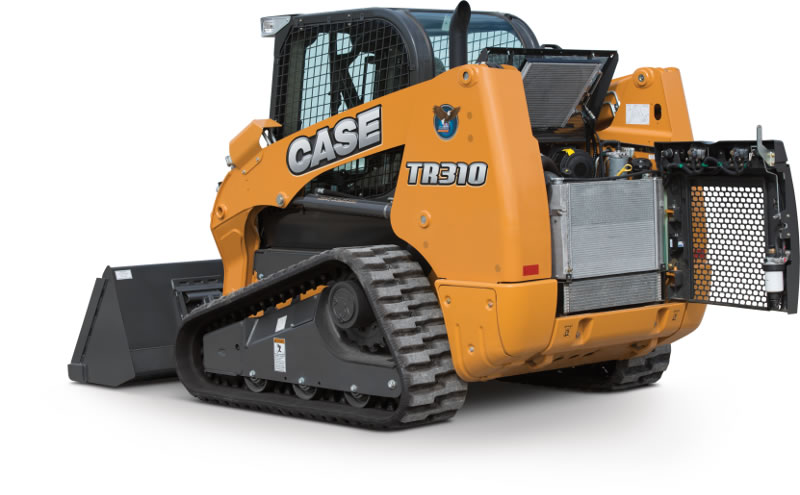

With just two retaining bolts the Case TR310 compact track loader is able to tilt, providing access to hydraulic and transmission components when necessary.

A safety locking system that prevents the cab from dropping is automatically activated.

Easy access, daily service points grouped together and remote mounted filters mean it’s easy to keep the Case TR310 compact track loader working to it’s maximum efficiency.

HIGH VERSATILITY

The Case TR310 is able to handle a broad range of attachments providing outstanding versatility to serve a broad range of industries.

Fast attachment changeover is possible with the CASE Connect Under Pressure standard feature. Allowing the operator to connect tool hoses without a wrench. With the hydraulic coupler option, attachments can be changed rapidly without leaving the cab!

There are a range of Compact track loaders attachments available to suit the Case TR310 including:

Planers, Asphalt Float, Wheel Compactor, Rock Wheel, Hammer, Backhoe Bucket, Cement Mixer, Snow Blower, Snow Blade, Dozer Blade, Buckets, Broom Bucket, Auger, Farm Fork, Fork and Grapple, Pallet Fork and Bale Spike.

Download Case TR310 Compact Track Loader Brochure
