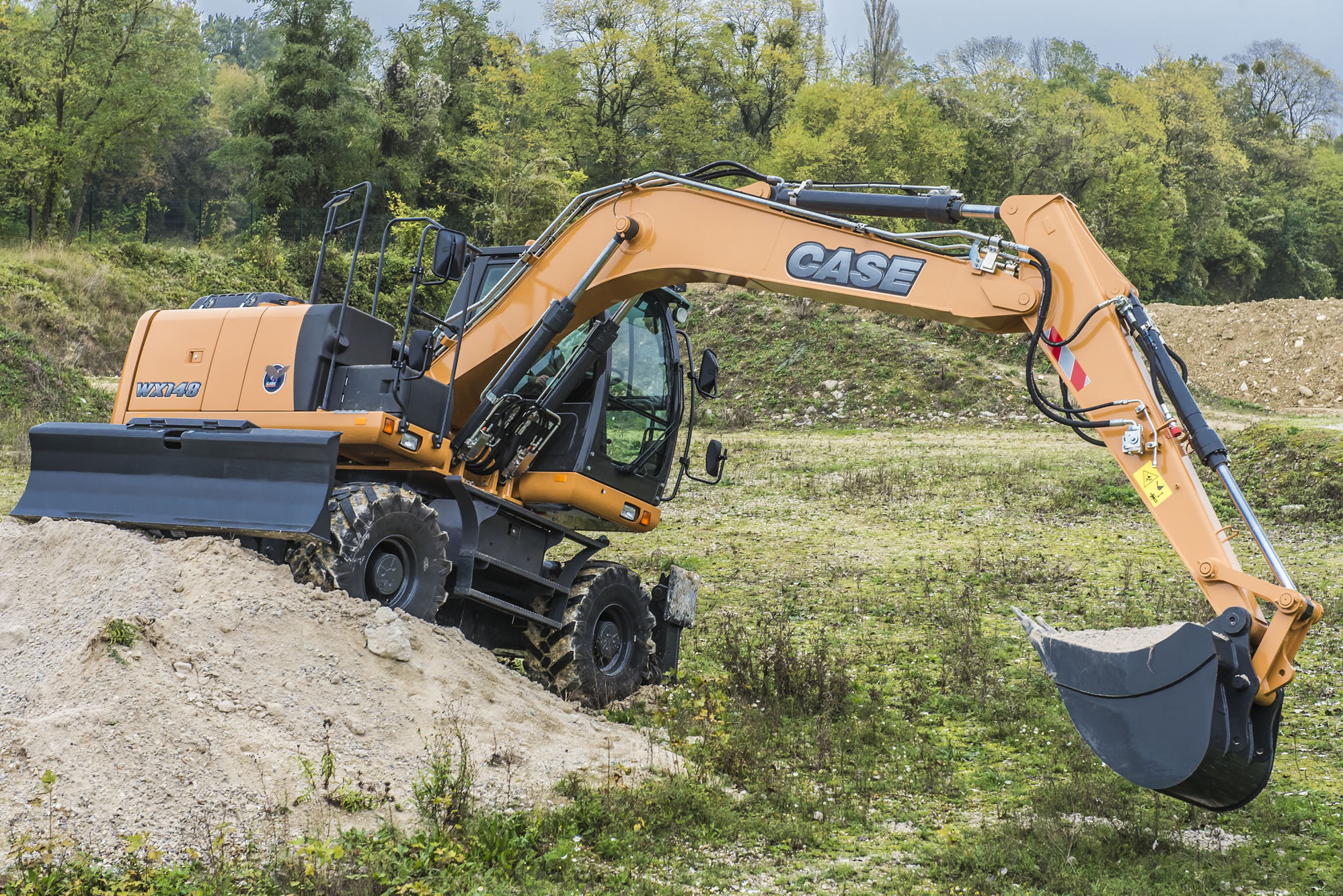

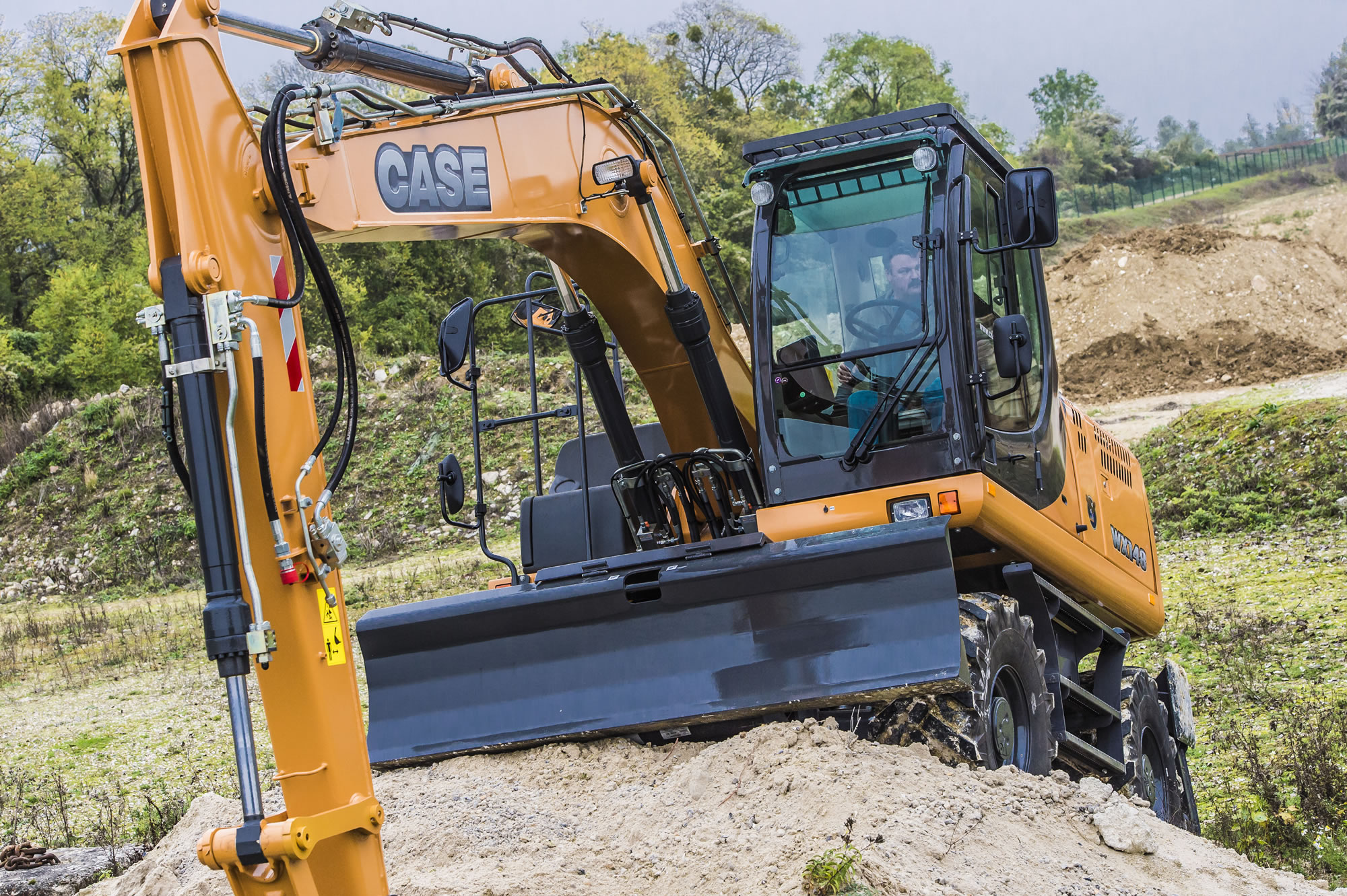

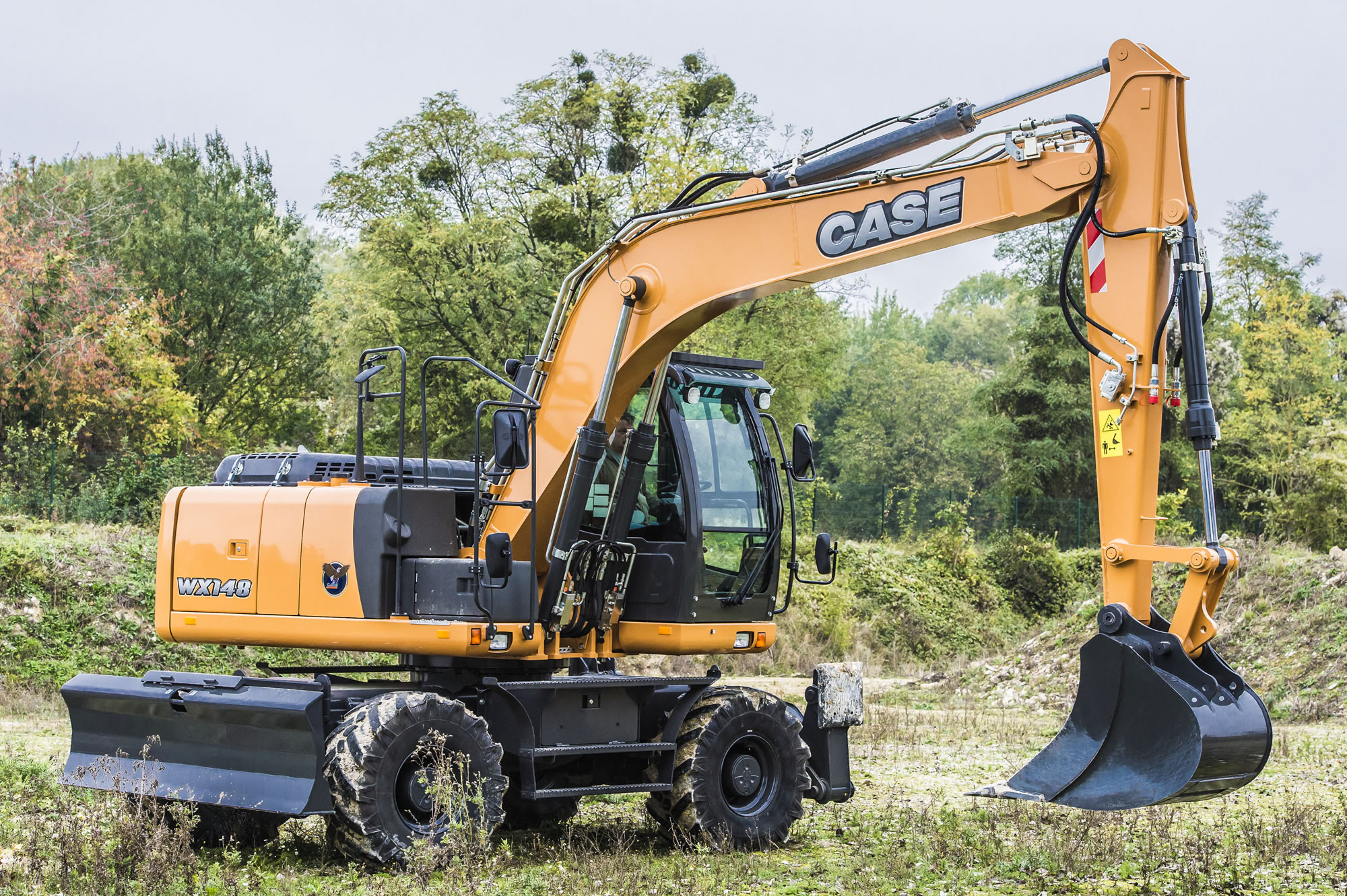

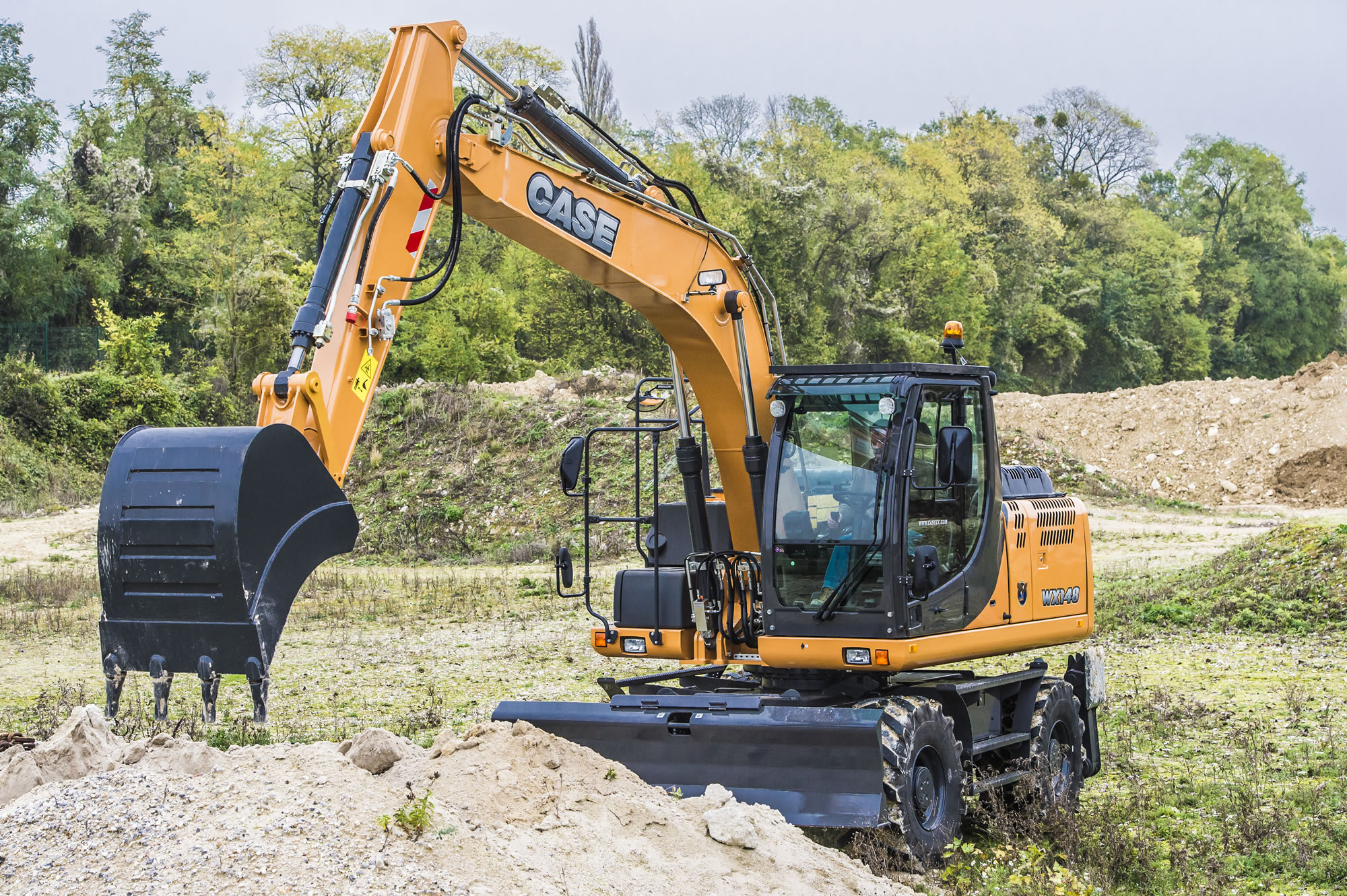

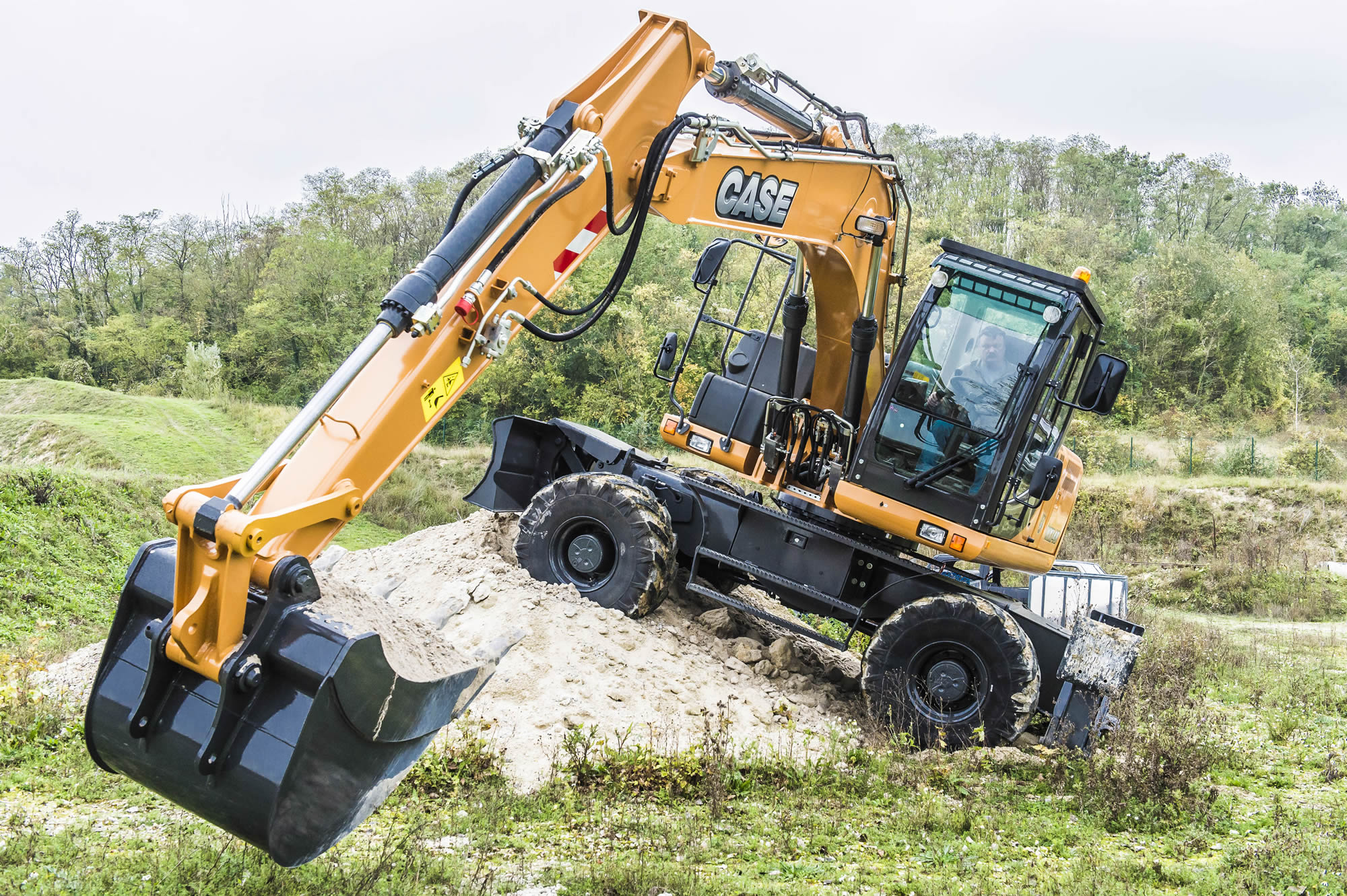

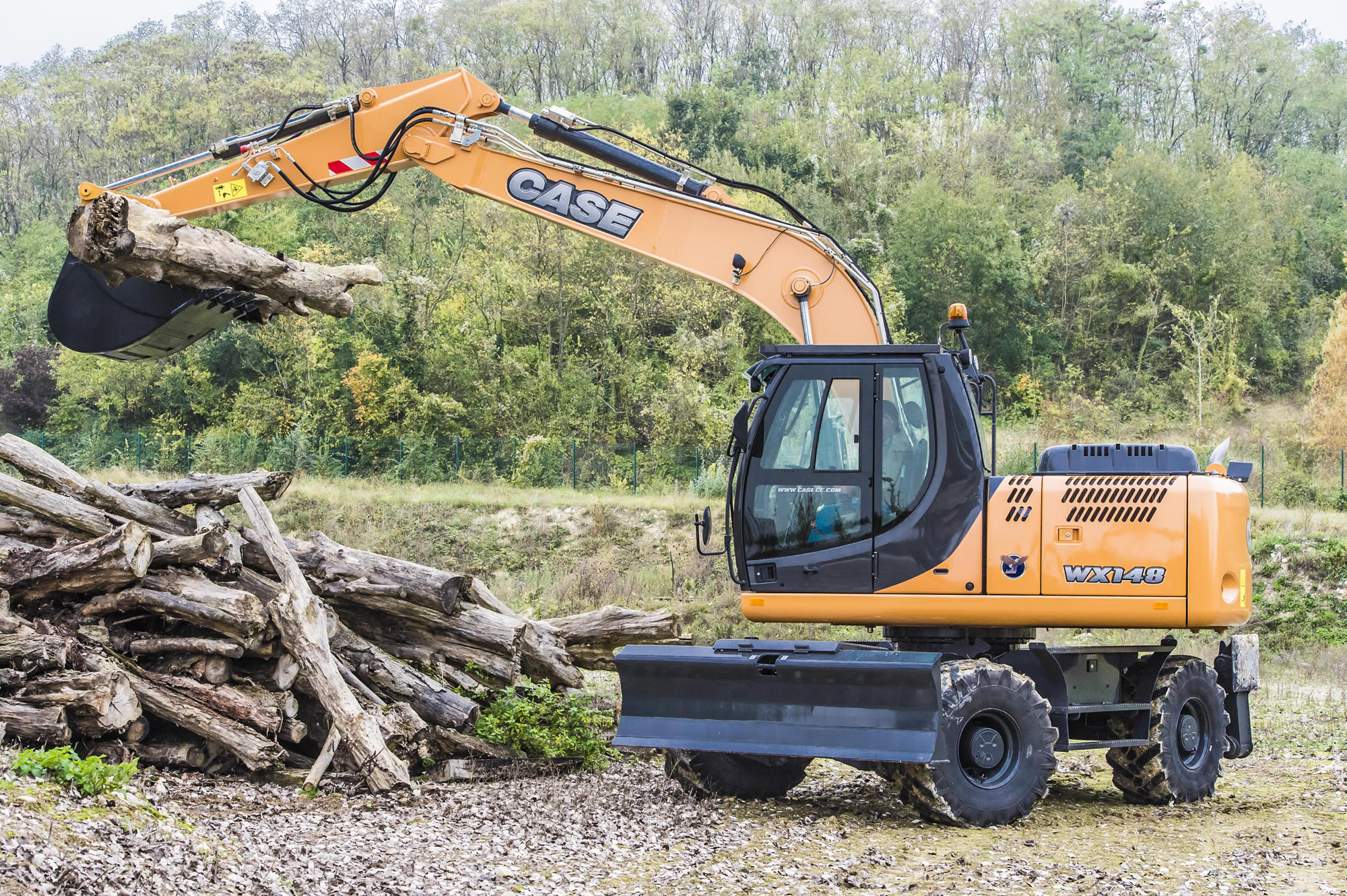

Case WX148 Wheeled Excavator

First-class comfort

• The inclination of the steering column is continuously adjustable to fit the operator’s best working position
• The controls are individually adjustable to match personal preference.
• The adjustable air suspended and heated seat combined with the ergonomic design of armrests and foot pedals provide the best possible workstation.
• The tinted safety glass, sun blinds and transparent rain protection above the front window provide comfortable working conditions, while the automatic air conditioning maintains a comfortable in cab climate.

Easy to operate

• The controls layout is designed to minimise fatigue, with all the travel functions and switches easily accessible and grouped on the steering column.
• The machine’s information is easy to access and understand on the in cab monitor, so the operator can focus on the job.
• A new engine speed and working mode selection dial makes it easy for the operator to set the machine up in any working situation.
• The dial delivers low idle speed, two lifting modes, and three eco working modes. It also provides access to the Heavy Mode for maximum digging performance.
• The new levelling mode can be easily activated in Eco or Heavy mode by simply pressing a switch on the right hand joystick.
• The blade and each of the stabilizers are proportionally operated. Each of the stabilizers can be easily activated by switches.

All round Visibility

• Large glazed surfaces, safety tinted glass, one-piece right hand side window and large roof window provide superior visibility all round.
• Standard working lights on the boom and cab front add to the excellent visibility.
• The standard rear view camera further enhances visibility to the rear.

Powertrain

• Our WX excavators drive through a fully automatic hydrostatic power shift transmission and heavy duty axles, providing fast travel speed between working sites and excellent traction.
• An improved orbital steering system delivers effortless and precise control.
• A larger steering angle makes it even easier to move in confined areas.
• With a creep speed function and high ground clearance, the machines are also capable of tackling the toughest of site conditions.
• Excellent drawbar pull is a feature of all three machines and the axles have an auto locking feature for maximum stability when working without stabilizers.
• Multi-disc wet brakes and axle oil change intervals of 2000 hours will reduce operating costs.

Total Stability

• The new WX design leads to an outstanding stability even on tyres.
• Our wheeled excavators have always boasted a robust design and sturdy build quality.
• These new WX models are no exception, with a strong chassis providing the option of a dozer blade, dozer blade and stabilisers, or stabilisers front and rear for total balance and a stable working platform.
• The dozer blade with parallel kinematics is made extra -robust in a curved design for best material retention.

Easy Maintenance

• Big and wide-opening hoods provide easy access to all service points.
• Maintenance operations are quick and easy with the grouped, easily accessible greasing points, and easy to reach filters at the rear of the machine.
• The extended greasing intervals for the attachment (up to 500 hours) maximise uptime and lower operating costs.

Safe Attachment Operation

• Boom cylinders feature safety valves as standard.
• For added safety, a complete object handling kit (safety valves on dipper, loading hook, overload warning) and a heavy-duty holder for grabs are available as options.

ROPS/FOPS Cab

• The reinforced structure of the cab is ROPS and FOPS certified.
