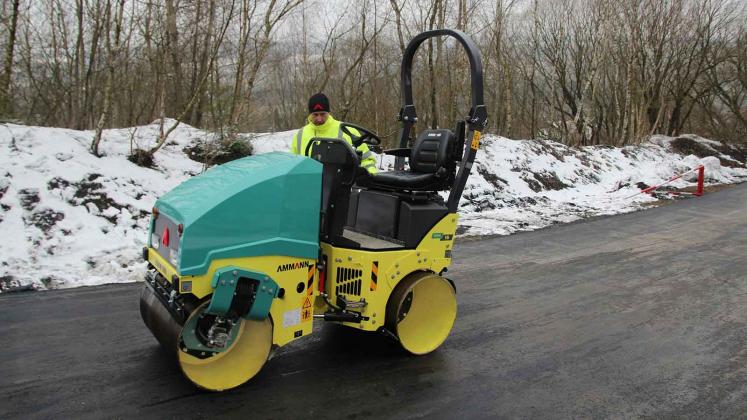

Ammann ARX16 Tandem Roller

Model: Ammann ARX16 Tandem Roller
Engine : Yanmar 3tNV76
Engine Power: 20hp
Drum Width : 900mm
Operating Weight : 1700kg

The Advantages of the Ammann ARX16 Tandem Roller

Customer input plays a crucial role in developing the features that are built into all Ammann products, including light tandem rollers. Those requests include a vibration- insulated operator’s platform with intuitive controls and a system for smooth starts and stops on asphalt. A smart compaction system and easy serviceability also fulfil customer needs.

Ammann ARX16: Design

  • Rubber mounted platform that limits vibration
  • Clear and simple layout of dashboard
  • Reliable, simple switches
  • Dashboard with integrated multifunctional display
  • Intuitive, ergonomic instrument panel
  • Tight turning radius
  • Fully adjustable and lateral-sliding seat and transversal seat adjustment on ARX23 – ARX45
  • Unobstructed view to drums
  • Compact design for easy loading
  • Foldable ROPS

Ammann ARX16 – Electronic Drive Lever

  • Offered only by Ammann
  • Enables smooth starts and stops, especially on asphalt jobs
  • Especially important on asphalt jobs where smoothness is essential
  • 3 -position throttle lever – 900rpm at low idle, 2100 at working speed and 2400 at high power

Ammann ARX16 – Additional Features & Benefits

  • Articulated steering concept with articulating oscillation joint
  • Double drive
  • Double vibration
  • Optimal drum diameter
  • Balanced weight front and rear
  • 2 frequencies with 2 centrifugal forces
  • Multiple water nozzles
  • Sprinkler water tank that lasts all shift
  • 2 scrapers per drum
  • Water-cooled diesel engine with long life, high performance and low maintenance
  • Combination model available, with rubber tyres in rear
  • Full flush (side-free) version enables edge work
  • Offset models increase compaction width

Ammann ARX16 – Serviceability

  • Reliable, long-life vibration system prevents downtime
  • Outside drain plugs for quick fluid changes
  • Bearings and central articulated joint lubricated for machine’s life
  • Easy access to maintenance points, water filters and nozzles
  • Long service life and extended service intervals

APPLICATIONS

Ammann Light Tandem Rollers excel in tight spaces and maximise productivity when in the open. The rollers also are productive on soil, aggregates and asphalt.

Applications

  • Small and medium construction sites
  • City roads
  • Boardwalks
  • Repair works in city centre
  • Road maintenance

OPERATOR COMFORT

Design can help make operators comfortable and machine loading easy. One of the most important design benefits is ease to use. Putting controls in easy-to-access locations and making displays visible and intuitive help operators make the most of the machine – from the very first day.

Comfortable Operator’s Station

  • Spacious platform
  • Double-vibration-isolated operator platform
  • Fully adjustable and lateral-sliding seat

User Friendly

  • Easy-to-operate instrument panel
  • Tight turning radius
  • Smooth starting and reversing of the machine by electronic drive lever
  • Compact dimensions for transport
  • Well positioned fixation points for transport/lifting

Helpful Dashboard

  • Clear and logical layout
  • Reliable, intuitive switches
  • Integrated multifunctional display

Optimal Visibility

  • Narrow frame enables optimal view to drum edges and surfaces
  • Adjustable seat improves sight lines

ENGINE & DRIVE

Power is required on every job, and the Ammann Light Tandem Rollers offer plenty. Fuel efficiency is an added bonus that helps reduce your operating costs and has a direct impact on profitability.

Yanmar Engine

  • Water-cooled and diesel powered
  • High performance
  • High torque
  • 2 working speeds
  • Long life
  • Low maintenance
  • Low emissions

OPTIONS

Standard features on Ammann Light Tandem Rollers offer what you need to get the job done.

Choose the options that make your machine the perfect fit for your jobsites.

Options

  • CE kit with folding ROPS and working lights
  • Canvas canopy
  • FOPS canopy
  • ACEforce compactometer
  • Asphalt thermometer
  • Road lighting
  • Reverse alarm
  • Battery disconnection switch
  • Central-lifting hook
  • Wide-tyre kit (ARX 26K)
  • ATC – Ammann Traction Control (some models)
  • Armrests
  • Edge cutting tool including a multifunction lever
  • Biodegradable hydraulic oil
  • In-line drums (some models)
  • Custom colour
