X Watch XW3 – Angle & Lateral Slew Limits

Make: X Watch
Model: XW3
Restriction: Angle & Lateral Slew Limits

The X Watch XW3 Excavator safety system can be configure to work on a variety of articulated hydraulic plant. Slew limitation is controlled using proportional soft-stop hydraulic valves providing accurate and repeatable performance without detriment to the machine.

  • Operation is fail safe and fully automatic with function selection never more than two key presses away.
  • Dependant on installed options, XW3 can support both single/dual parallel ‘wall’ limits and angular limits.
  • Slew speed will ramp down on approach to a limit, and soft-stop at the limit. Full power is always available if moving away for a slew limit.
  • A slew limit can be either manually keyed in or set automatically by positioning the machine equipment and pressing HERE.
  • Set up is simple, quick, and can be protected with an optional access key switch. All settings are retained and will be active on start-up.
  • XW3 measures to the front and equipment centre line. Tool width must be taken into consideration when manually setting limits.

MAJOR COMPONENTS CARRY A FIVE YEAR GUARANTEE EXCLUDING MIS-USE AND PHYSICAL DAMAGE.

Options Include:

  • Access Key Switch (Prevents / allows setting changes)
  • Beacon (Height limit active indication)
  • Reeling Drum (Monitors telescopic arm extension, single proximity switch detection also available)
  • Platform Sensor (Monitors chassis pitch and roll angles)
  • Data Logger (CAN bus mounted event recorder with SD card)
  • 12VDC Valve Coils (No cost option for smaller machines)
  • Angle Sensors (If not specified, only angular slew limitation will be available)

IO Controller

Solid state, fully potted IP67, mounted in pump or engine bay. 4 x analogue inputs. 8 x digital inputs. 12 x output. All with full electrical protection and diagnostics, 2 x CAN bus. 11 – 30VDC. Manual key override for motion control valves. <10mS program cycle time for accurate response.

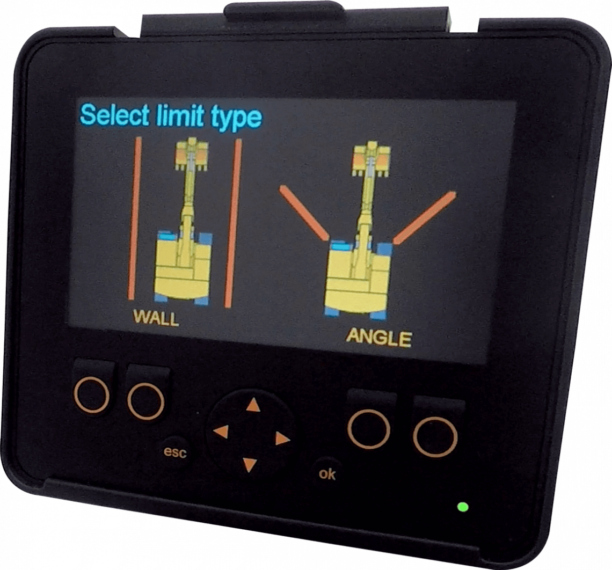

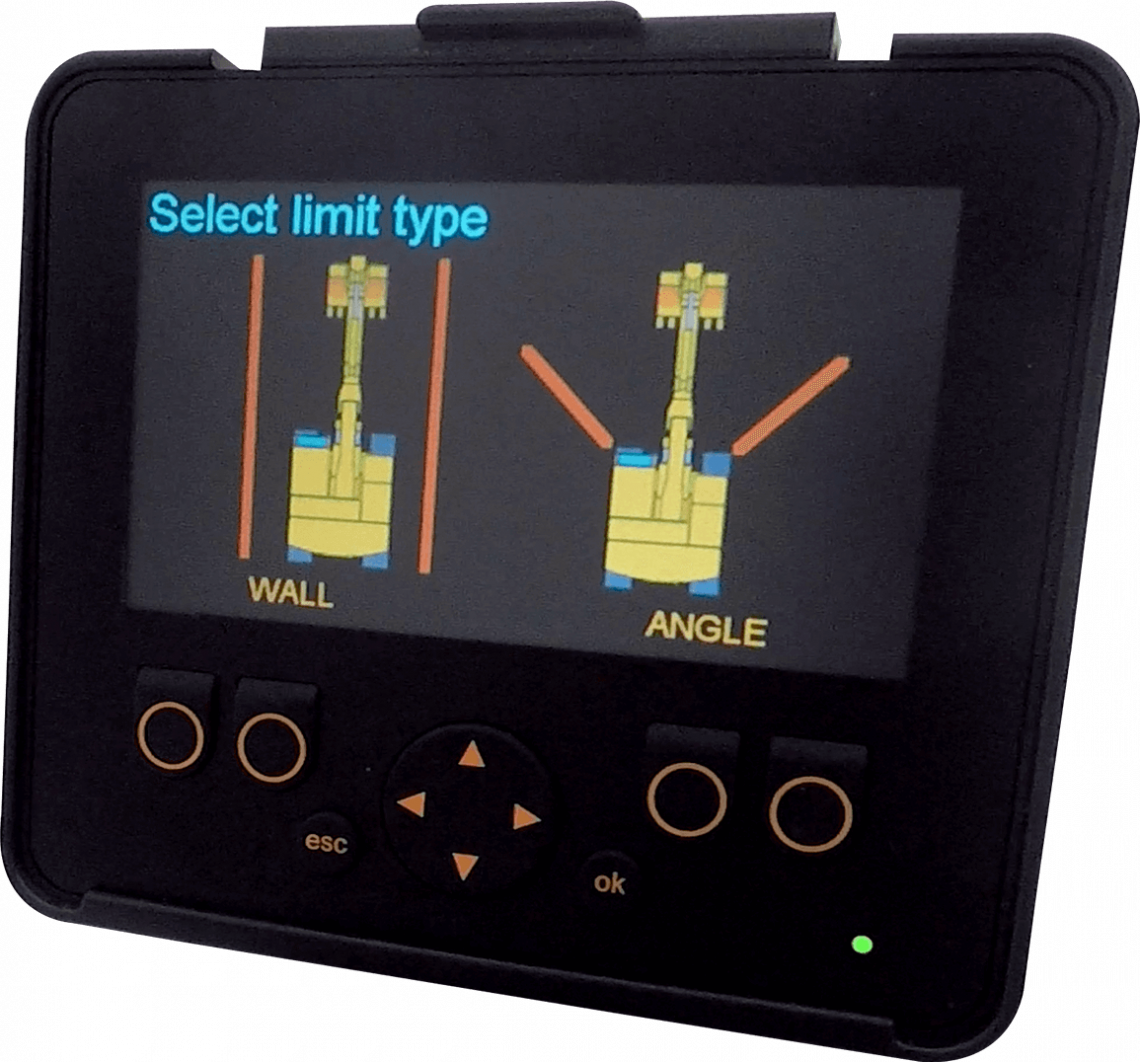

Display

Solid state, IP65, RAM mount to window or dash. 4.3” or 2.8” backlit colour LCD. 7 x backlit, tactile keys. 1 x CAN bus. 11 – 30VDC.

Cabling

Industry standard multi-core screened with M12 connectors.

Angle Sensors

Compact solid state 3 axis accelerometer with gyro compensation. Stainless steel, IP67. CAN J1939. Steel mounting bracket. Can be mounted anywhere on the front end equipment in any orientation. Direct drive performance. Up to three articulations can be monitored with the addition of chassis attitude.

Hydraulics

Custom made super compact aluminium PWM proportional sandwich valve available in 2, 4, and 6 valve manifolds, other hydraulic options are available.

Download X Watch XW3 – Angle & Lateral Slew Limits Brochure
