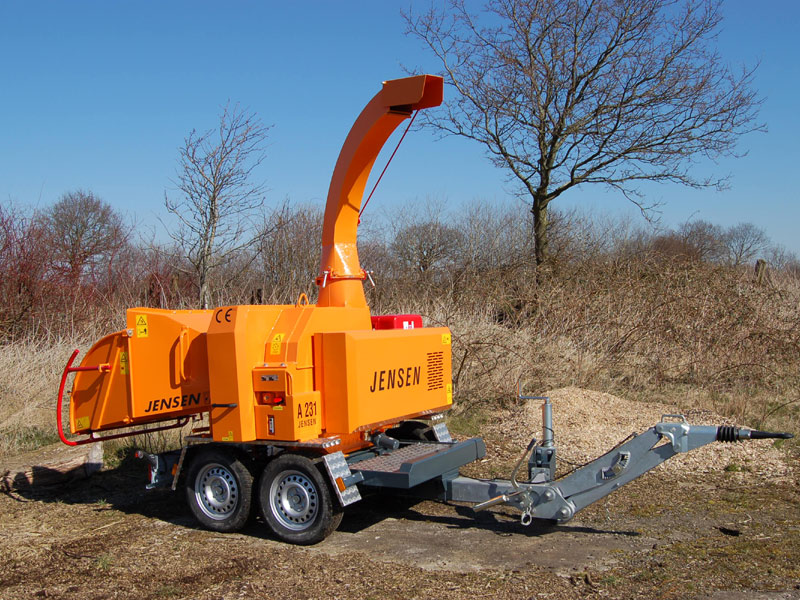

Jensen A231 Wheeled Chipper

Model: Jensen A231 Wheeled Chipper
Infeed Roller Aperture: 310x240mm
Flywheel Dimensions: 970x35mm
Flywheel Weight: 250kg
Output: 30m3/hr
Weight 2500kg

The Jensen A231 wheeled chipper can chip up to 10″ in diameter, and is powered by a highly reliable Hatz engine. With it’s high level of user friendliness, ease of maintenance and high performance, the Jensen A231 wood chipper is a favourite amongst our customers.

The A231 is Jensen’s second largest wood chipper amongst the disc chippers. This chipper offers a huge chipping capacity of 30 cubic meters per hour!

You can choose between four Hatz diesel engines meeting your specific demands, special requests are also possible with this model.

As with the whole range of Jensen chippers the A231 can be modified to suit your exact working environment. Each towable chipper can be customised with the following:

  • Bio Oil
  • Custom Paint Colour
  • Height Adjustable Drawbar
  • Electronically Controlled Infeed System
  • Mechanical Folding Chute
  • Towing Eye
  • Ball Hitch
  • Light Guards

INFEED HOPPER

According to your needs, you can choose between a fixed or a compact, fold down feed hopper.

Both come equipped with a safety bar. Depending on the infeed control, it is used as a control bar or as an emergency stop bar.

TOUCH BUTTON FEED CONTROL

Jensen offer two options for the feed control. The manual hydraulic system to remove electrics completely or an illuminated touch pad rated feed controls to remove any possibility of water and vibration issues related to electronics.

This option offers maximum safety and is very user friendly.

INTERMESHING FEED ROLLER SYSTEM

Designed to grip and take away the most awkward material. Twin horizontal feed rollers are timed through a precision gearbox which allows the rollers to lock together for maximum grip on small brashy material as well as large timber.

The conventional chipper has a motor powering each feed roller, the Jensen has one motor which means the power to each roller is consistently strong whatever the material.

AUTO OVERLOAD REGULATOR

All Jensen machines can be delivered with an auto overload regulator. This electric device monitors the speed of the flywheel preventing the timer from feeding on to the flywheel when the flywheel rotations fall below a preset level. This allows the engine and flywheel to build up speed again before the rollers are re engaged to continue the chipping process.

OPEN FLYWHEEL SYSTEM

The flywheel is the heart of every wood chipper. Two blades which cut the full width of the timber mounted on a large flywheel with open tops, means there is nothing to hinder the chip leaving the flywheel.

Four full width draught fins pick up the material and throw it out of the chamber rather than relying on air to blow the chip. This means clearing green, wet material is simply not a problem, and blockages are virtually unheard of.

Download Jensen A231 Wheeled Chipper Brochure
