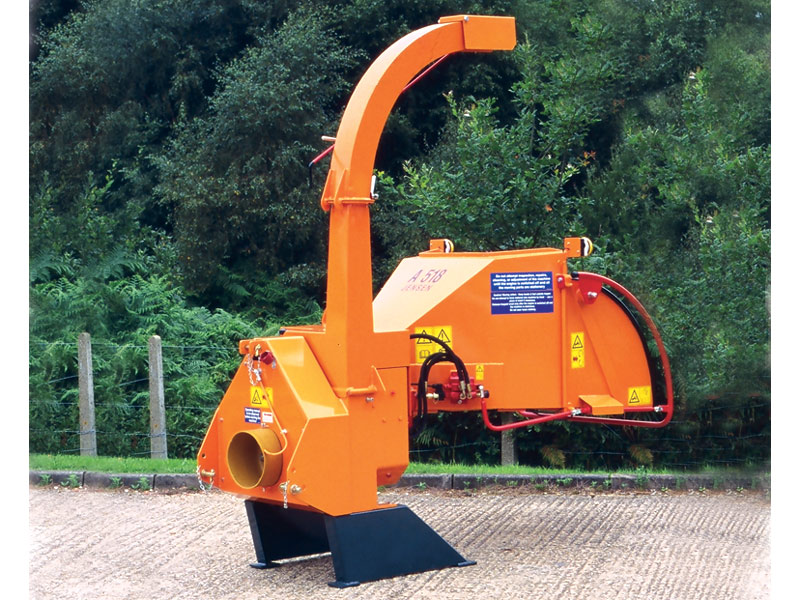

Jensen A530 PTO Chipper

Model: Jensen A530 PTO Chipper
Infeed Roller Aperture: 210x130mm
Flywheel Dimensions: 600x25mm
Flywheel Weight: 70kg
Output: 12m3/hr
Weight 500kg

The Jensen A530 PTO Chipper is the most compact chipper available from Jensen.

All Jensen PTO chippers are robust, powerful and compact. The Jensen A530 PTO is completely self contained with its own hydraulic system. They only need drive and electrical supply from the power unit to work.

Throughout the range, the Jensen PTO machines boasts outstanding performance and reliability. The A530 can be operated by a compact tractor of only 30hp!

All the Jensen PTO chippers can be rear or front mounted, with the option of manual or crane fed hoppers. Cranes as well as chassis and other extras can also be mounted and supplied with the machine.

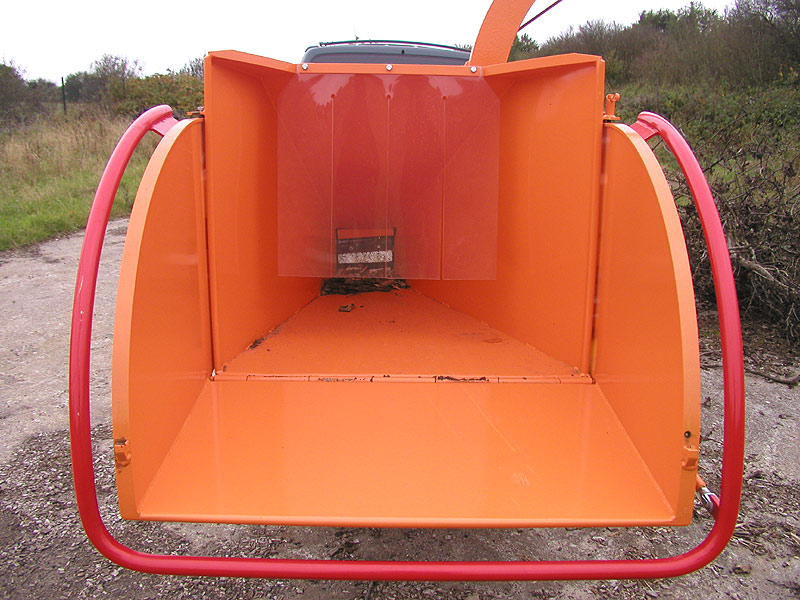

INFEED HOPPER

According to your needs, you can choose between a fixed or a compact, fold down feed hopper.

Both come equipped with a safety bar. Depending on the infeed control, it is used as a control bar or as an emergency stop bar.

TOUCH BUTTON FEED CONTROL

Jensen offer two options for the feed control. The manual hydraulic system to remove electrics completely or an illuminated touch pad rated feed controls to remove any possibility of water and vibration issues related to electronics.

This option offers maximum safety and is very user friendly.

INTERMESHING FEED ROLLER SYSTEM

Designed to grip and take away the most awkward material. Twin horizontal feed rollers are timed through a precision gearbox which allows the rollers to lock together for maximum grip on small brashy material as well as large timber.

The conventional chipper has a motor powering each feed roller, the Jensen has one motor which means the power to each roller is consistently strong whatever the material.

AUTO OVERLOAD REGULATOR

All Jensen machines can be delivered with an auto overload regulator. This electric device monitors the speed of the flywheel preventing the timer from feeding on to the flywheel when the flywheel rotations fall below a preset level. This allows the engine and flywheel to build up speed again before the rollers are re engaged to continue the chipping process.

OPEN FLYWHEEL SYSTEM

The flywheel is the heart of every wood chipper. Two blades which cut the full width of the timber mounted on a large flywheel with open tops, means there is nothing to hinder the chip leaving the flywheel.

Four full width draught fins pick up the material and throw it out of the chamber rather than relying on air to blow the chip. This means clearing green, wet material is simply not a problem, and blockages are virtually unheard of.

Download Jensen A530 PTO Chipper Brochure
