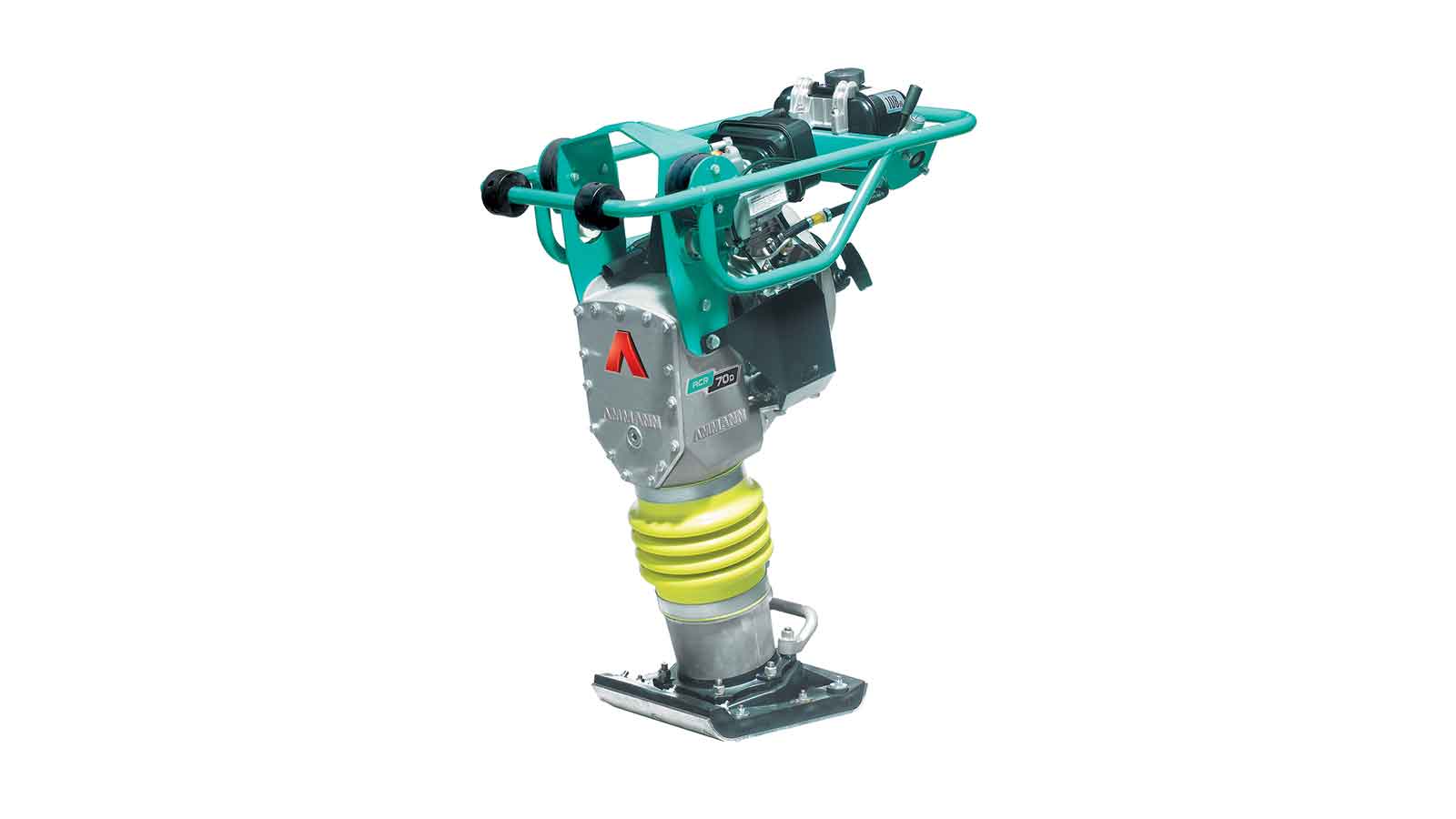

Ammann ACR70D Rammer

Model: Ammann ACR70D Rammer
Engine : Yanmar L48 AE
Engine Power: 4hp
Working Width : 280mm
Operating Weight: 83kg
Percussion Rate 730bpm
Centrifugal Force 14kN

The Ammann ACR70D rammer offers the highest performance, operator’s comfort, economic viability, ergonomic design and useful optional equipment and therefore the optimal compaction machine for every construction application. The Ammann rammers can be operated under the toughest conditions in trench compaction work, back filling or in patch works on roads – even in the most confined areas.

The Ammann ACR70D has been developed in accordance with the newest ergonomic and environmental requirements. It is powered by a Yanmar diesel engine and an operating weight of 83 kilos. As usual with your heavy duty construction machinery this rammer consumes diesel fuel so that just one type of fuel has to be made available on the job site.

The high compaction performance of the Ammann rammers combined with an extraordinary fast forward motion, and extreme low centre of gravity due to the low mounted engine and downward distribution of the mass, makes the Ammann ACR70D a very robust and reliable rammer. A height adjustable vibration reducing handle, and fuel reservoir, allowing the user to operate the Ammann rammer for longer periods.

Various sizes of shoe widths from 165mm up to 400mm assure a wide range of applications for the Ammann ACR70D rammer.


High manoeuvrability in confined areas thanks to short guiding handle

  • Operator’s comfort: sure-grip and vibration isolated guiding handle
  • Solid engine protection casing
  • Standard engine equipment: automatic oil alert system with LED warning light
  • Additional handle for easy transport and loading
  • Tamper shoe made of high quality synthetic material with integrated steel plate – option: wear and tear steel plate protection on both sides

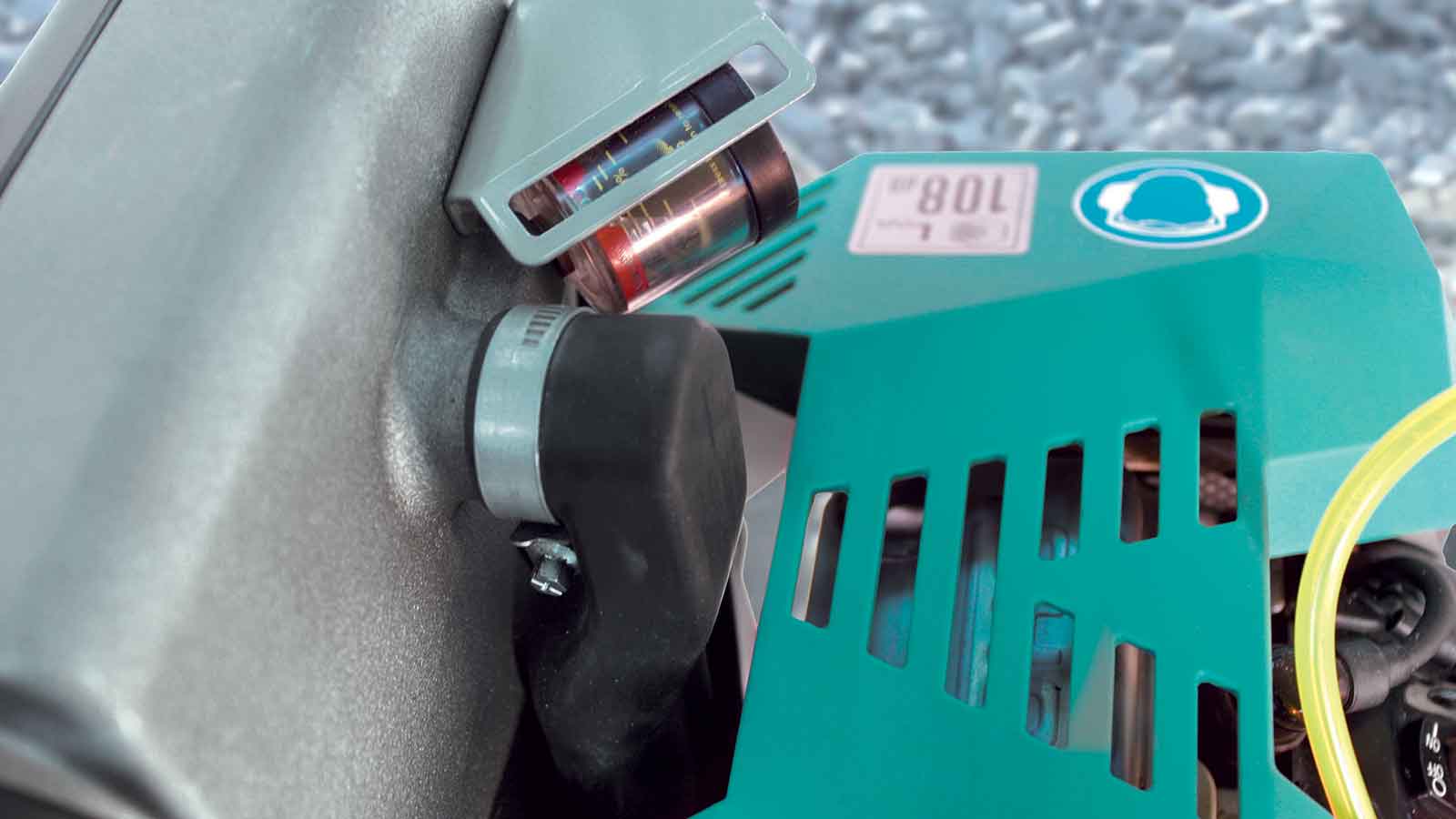

  • Fuel reservoir with extended volume and integrated filter
  • Convenient transport device with centring
  • Hour meter with engine speed indicator

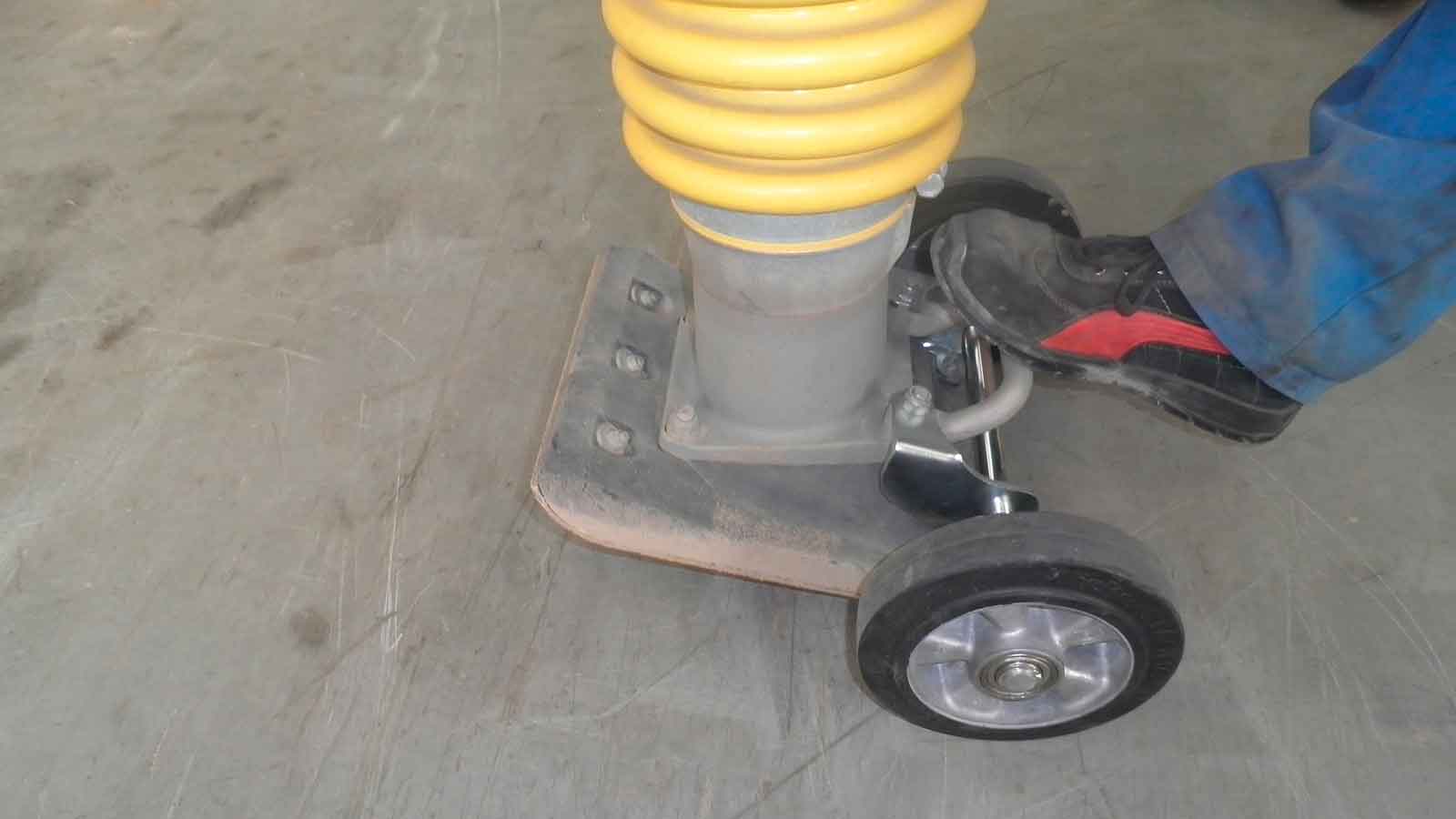

  • Additional rolls for easy loading and unloading
  • Improved forward motion thanks to lower centre of gravity and fine tuned machine design
  • Robust gear box housing
  • Innovative spring assembly for a compact design of the spring leg


Download Ammann ACR70D Rammer Brochure
