Case CX60C Mini Excavator

Manufacturer: Case
Model: Case CX60C Mini Excavator
Engine: Yanmar 4TNV98C
Engine Power: 50hp
Weight: 5580kg
Track Width 380mm
Hydraulic Pump 2x55l/min

The Case CX60C Mini Excavator delivers outstanding productivity via it’s smooth hydraulics. This excavator is powered by a Tier 4 Final Yanmar Engine, producing low fuel consumption via the standard auto-idle system and 2 working modes. Optimised traction and speed is delivered via the auto shift-down feature which enhances travel torque and secures travel speed by automatically changing from 2nd to 1st gear when additional traction is required.

This mini digger boasts a modern and functional cluster with an advanced 5.7″ full colour LCD touch screen displaying all the key readings an operator would require. Peace of mind is guaranteed with a built in Engine Start Limitation (ESL) requiring the operator to input a 5 digit code before engine start up.

OUTSTANDING PRODUCTIVITY

  • The Case CX60C delivers fast cycle times and smooth simultaneous movements thanks to an efficient hydraulic system.
  • The flow summation on the boom-up movement increases cycle speed.
  • An additional pump minimises simultaneous movements’ interference.
  • Auxiliary hydraulic circuits are easily controlled from the right and left joysticks.

EFFICIENCY & VERSATILITY

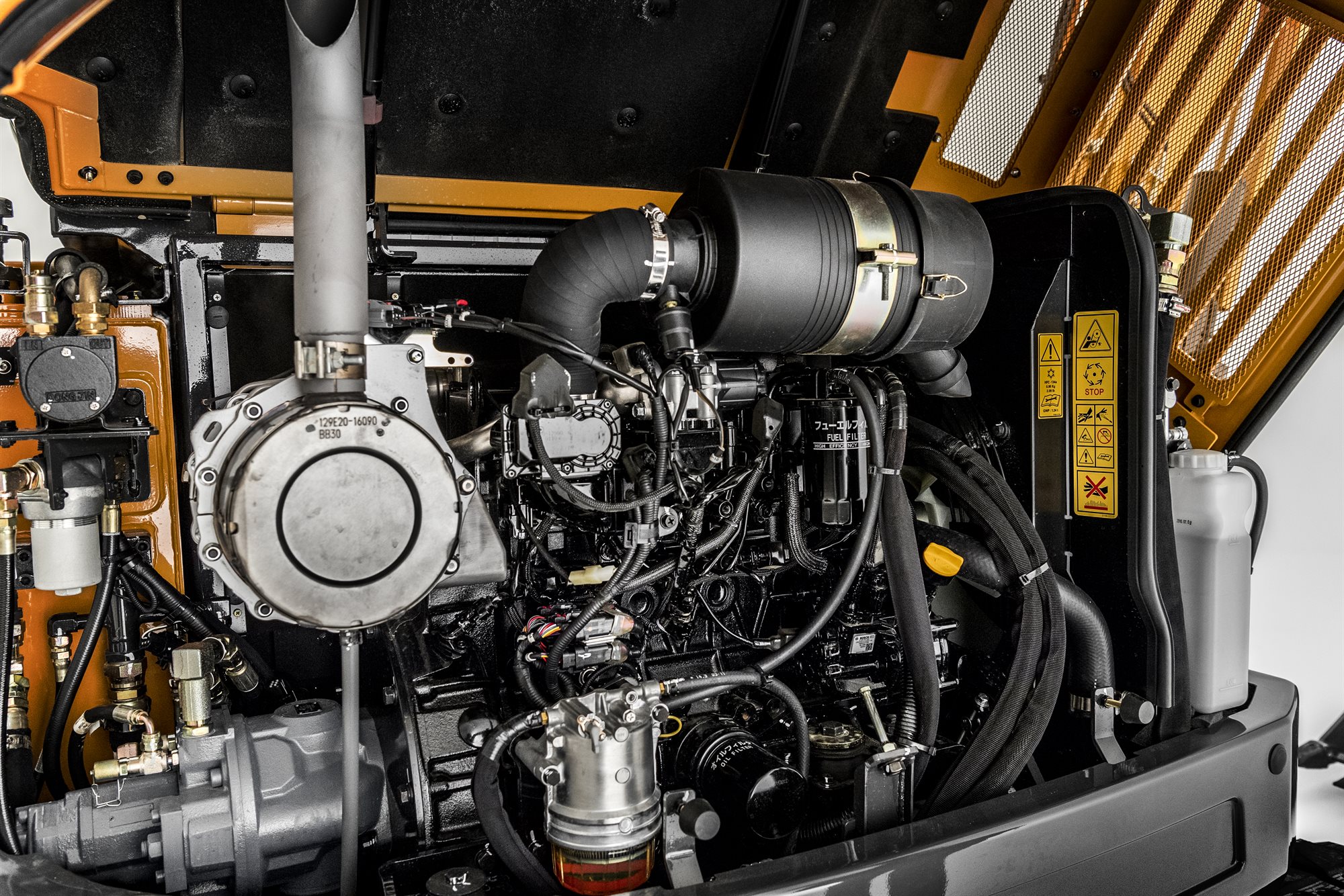

Clean & Powerful Engine

  • Powerful electronic Tier 4 Final Yanmar Engine.
  • Low fuel consumption with standard auto-idle system and 2 working modes.
  • High pressure common rail technology for optimal fuel usage.

Tailor made machines for you specific needs

  • Short radius or conventional tail swing.
  • Long and short arms available for maximum digging depth or maximum breakout force.
  • Additional counterweights for increased stability and lifting capacity.

Auto shift-down feature

  • The standard auto shift-down feature enhances travel torque and secures travel speed by automatically changing from 2nd to 1st gear when additional traction is required, and then back from 1st to 2nd gear as soon as torque demand decreases.

STRESS FREE WORKING ENVIRONMENT

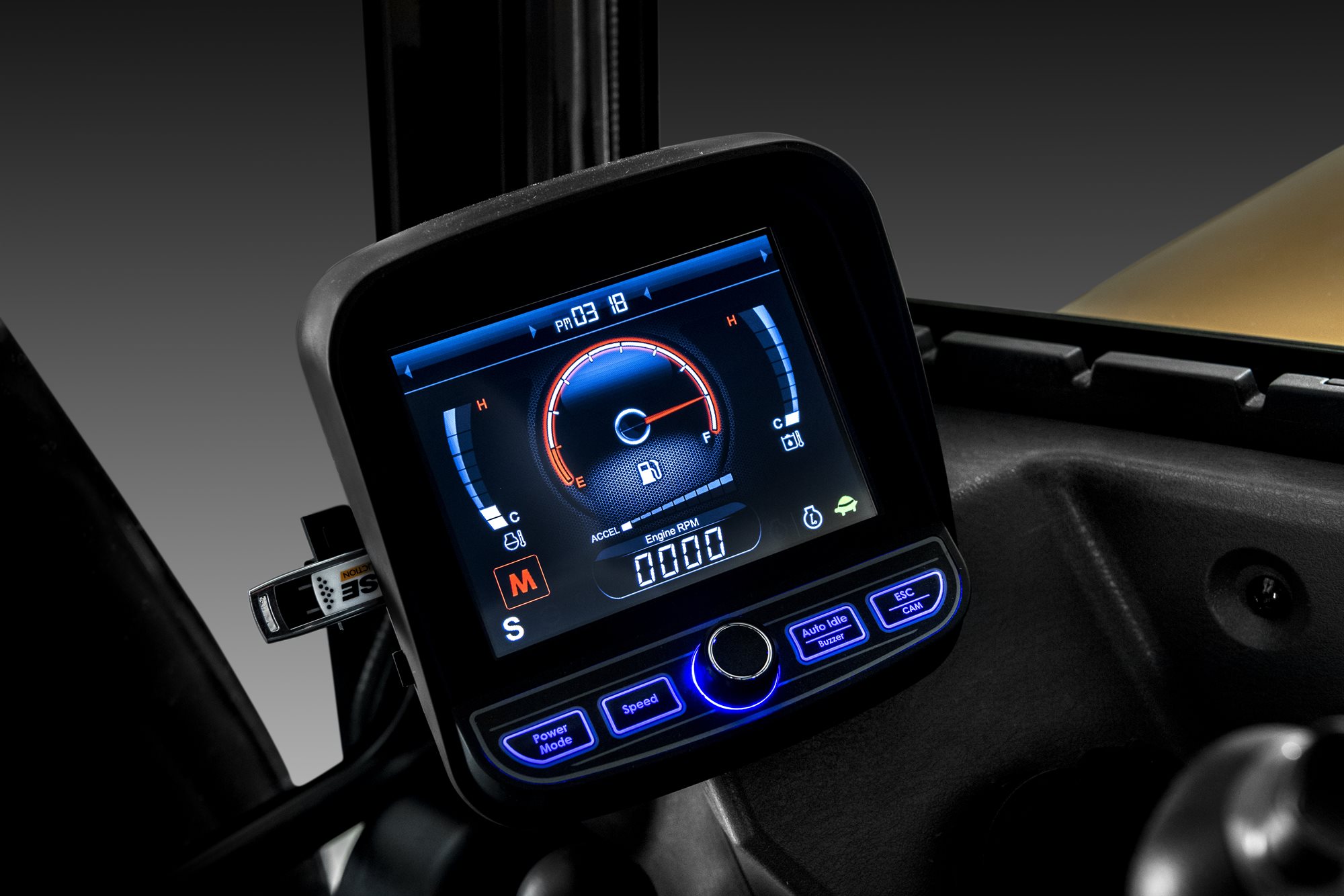

Modern & Functional Cluster

  • Advanced 5.7″ Color LCD
  • Touch Screen
  • 12 Languages
  • Engine Coolant Temperature
  • Hydraulic Oil Temperature
  • Fuel Tank Level
  • Complete Maintenance Information

Peace of Mind

  • ESL Anti-Theft is an Engine Start Limitation (ESL) requiring a 5 digit code can be set by the operator

Ready for Technology

  • Standard hands free feature: control mobile phone and radio via Bluetooth
  • MP3 compatible radio with USB plug and AUX plug for headphones

Automatic Climate Control

  • Standard automatic climate control grants a pleasant temperature inside the cab and heated seat

Comfort Counts

  • Excellent interior space and cab accessibility make operators daily job more pleasant and relaxed
  • The seat features a weight suspension system, it is heated and fully adjustable

Low Noise and Vibrations Level

  • Cab mounted on silent blocks combined with proper noise insulation result in a very quite work environment for C-Series operators

High Visibility

  • Slim and robust cab pillars allow the usage of large glazed areas that provide outstanding all round visibility
  • Rear view camera as well as rear working lights are available to further enhance visibility

SAFETY FIRST

  • ROPS / TOPS / FOPS: All C Series models and versions comply with Roll-Over / Tip-Over and Falling Objects – Protective – Structure requirements.
  • Emergency Stop Switch: The Case CX60C Mini Excavators have as standard feature a switch that immediately stops the engine in case of an emergency.
  • Pilot System with Accumulator: This standard feature allows the operator to put the attachment down safely even with the engine turned off for greater safety.
  • Travel Alarm: An acoustic alarm alerts the people near the machine when it moves forward or backward. This feature is optional on the Case CX60C.
  • Blade Safety Valves: Prevent the load from slipping or dropping due to hose failure. This feature is optional on the Case CX60C.
  • Double Flange Rollers: De-Tracking can be dangerous for the operator and the people near the machine. The Case CX60C mini excavator has a double flange roller design that minimises the risk of de-tacking.
  • Object Handling Kit: Includes safety valves on boom and arm, lifting hook on bucket linkage, and an overload alarm to handle heavy weights safely.

STRESS-FREE MAINTENANCE

  • Convenient access to all regular service points thanks to a large engine hood.
  • Long life of regular maintenance components.
  • Convenient pressure check points on valves.
  • Centralised greasing points and easy to change air filter.
Download Case CX60C Mini Excavator Brochure
