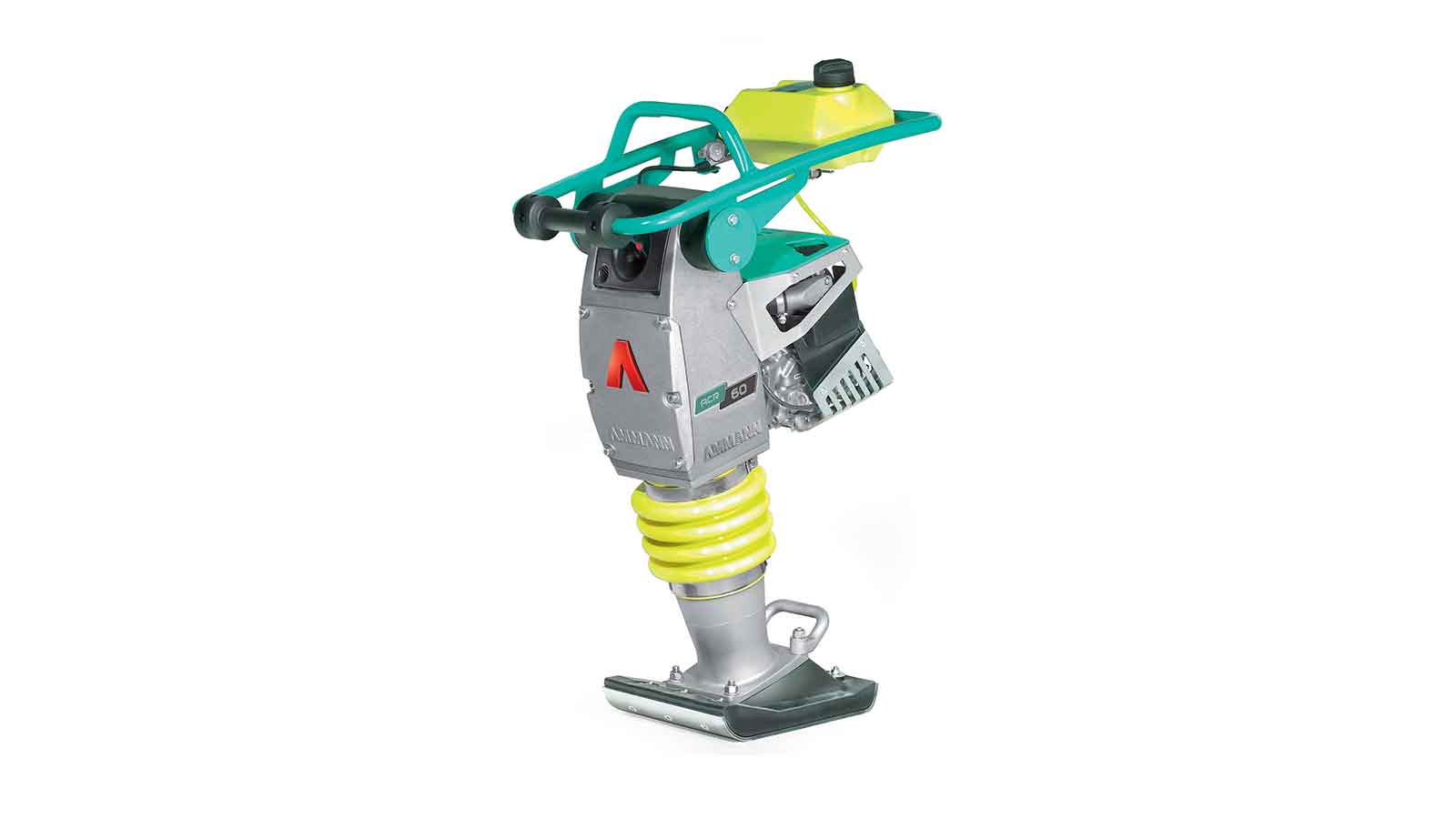

Ammann ACR60 Rammer

Model: Ammann ACR60 Rammer
Engine: Honda GX100
Engine Power: 3hp
Working Width: 280mm
Operating Weight: 62kg
Percussion Rate 680bpm
Centrifugal Force 11.5kN

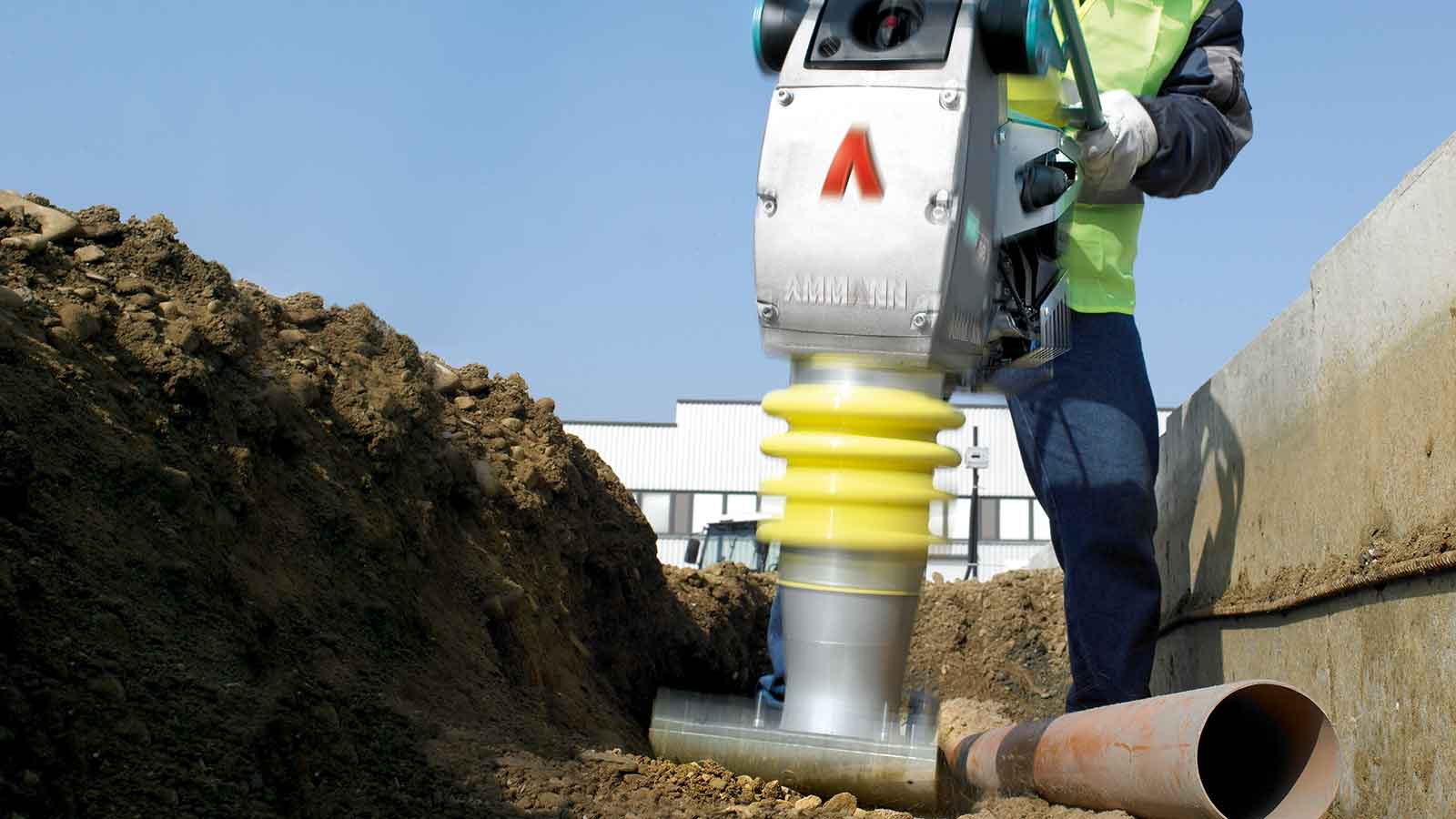

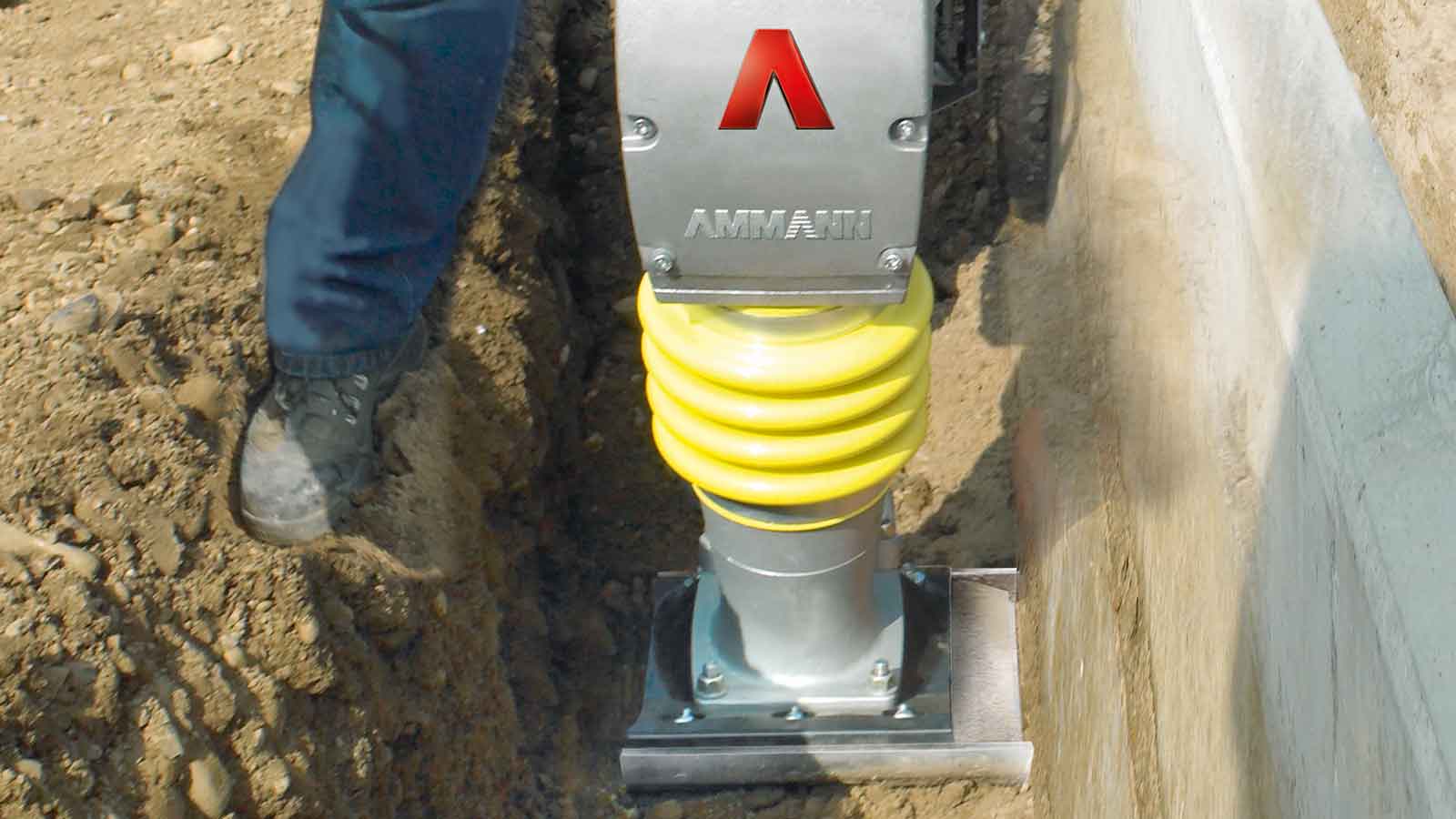

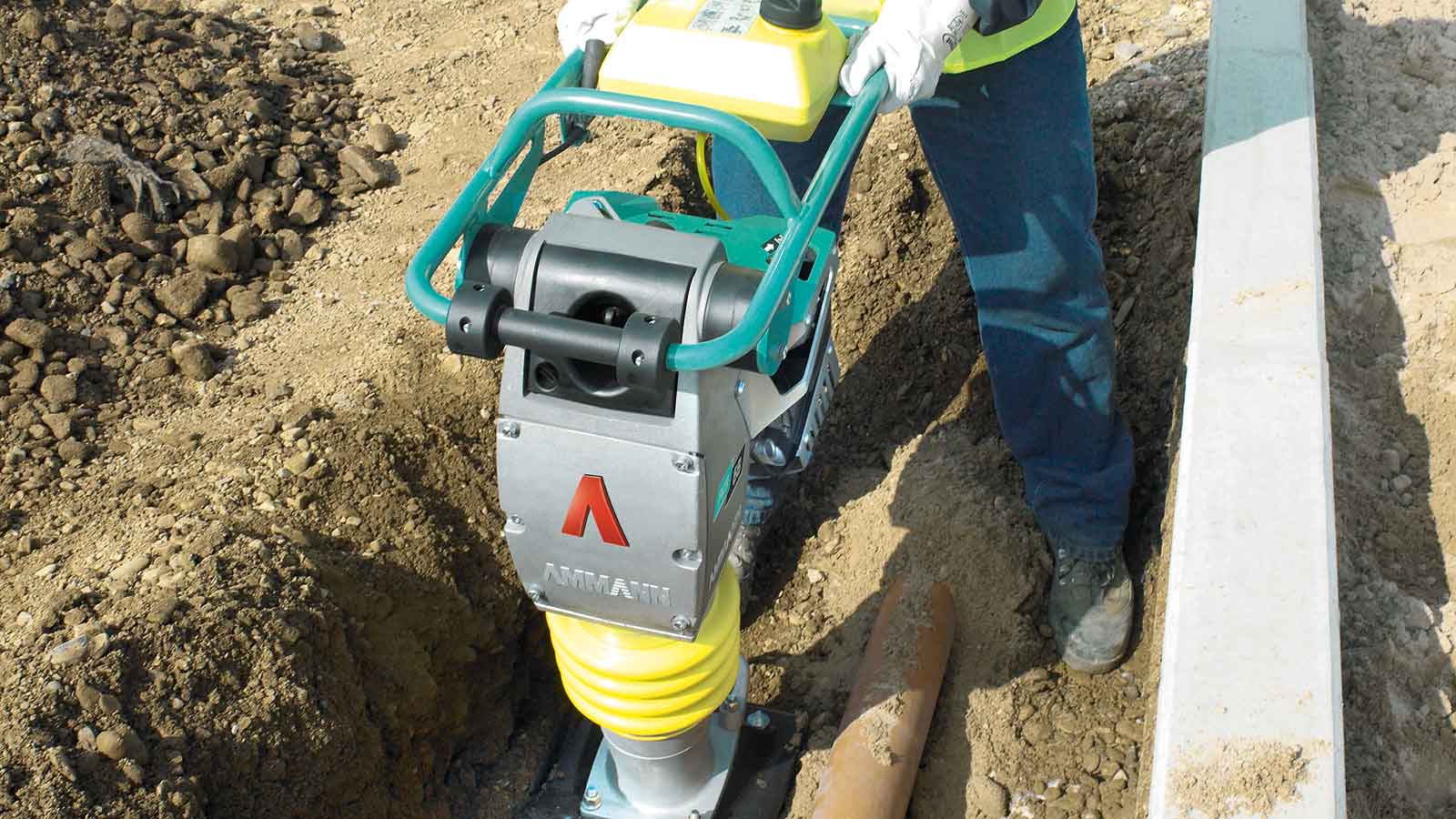

The Ammann ACR60 rammer offers the highest performance, operator’s comfort, economic viability, ergonomic design and useful optional equipment and therefore the optimal compaction machine for every construction application. The Ammann rammers can be operated under the toughest conditions in trench compaction work, back filling or in patch works on roads – even in the most confined areas.

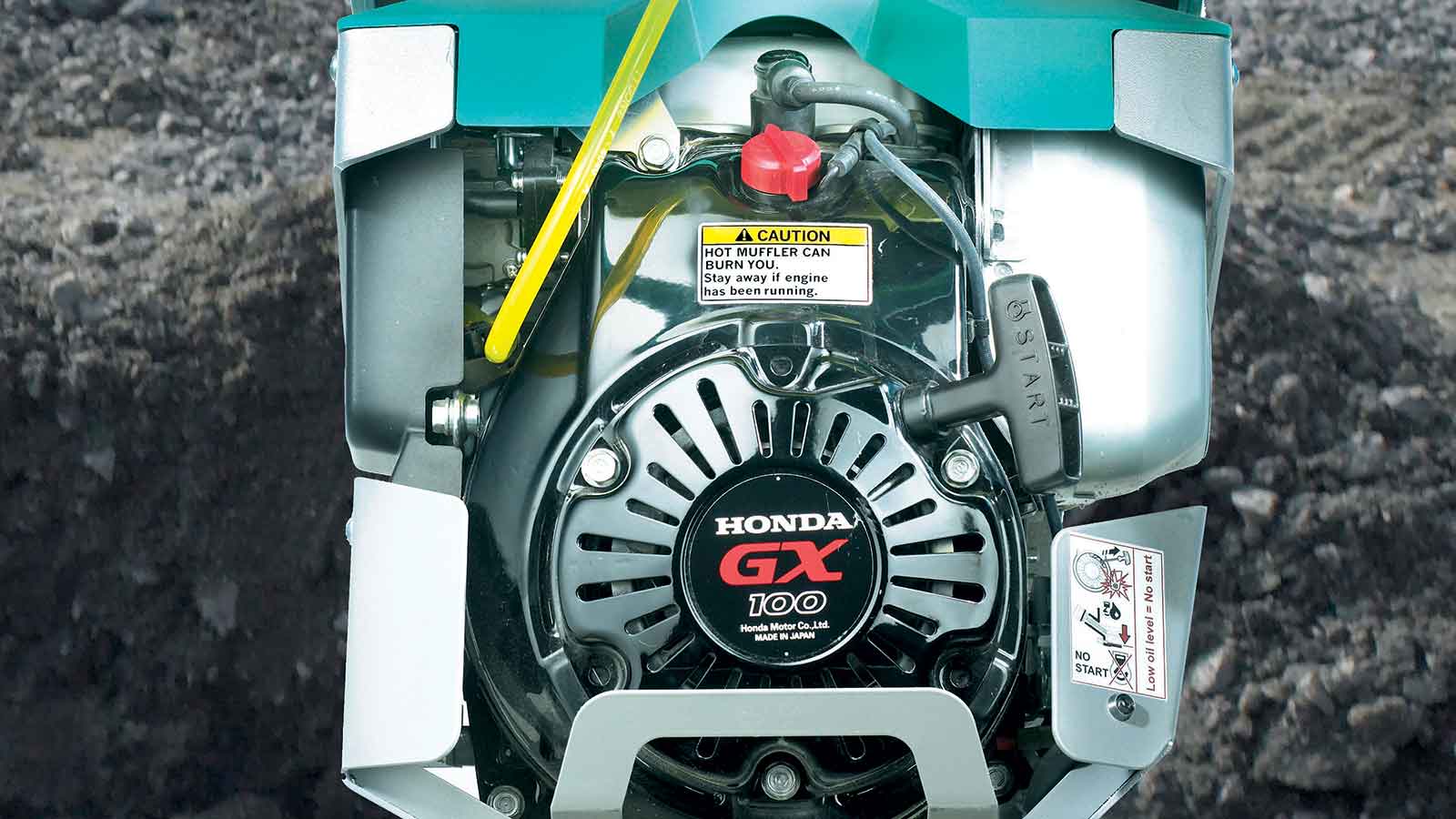

The Ammann ACR60 has been developed in accordance with the newest ergonomic and environmental requirements. It is powered by a Honda GX100 4-Stroke petrol engine with automatic oil alert system and with a carburettor with integrated pump which assures a better fuel injection leading to an always optimal engine start up.

The high compaction performance of the Ammann rammers combined with an extraordinary fast forward motion, and extreme low centre of gravity due to the low mounted engine and downward distribution of the mass, makes the Ammann ACR60 a very robust and reliable rammer. A height adjustable vibration reducing handle, and fuel reservoir with extended volume of 3 litres lead to fatigue free operation, allowing the user to operate the Ammann rammer for longer periods.

Various sizes of shoe widths from 165mm up to 400mm assure a wide range of applications for the Ammann ACR60 rammer.

INCREASED EFFICIENCY

  • High manoeuvrability in confined areas thanks to short guiding handle
  • Operator’s comfort: sure-grip and vibration isolated guiding handle
  • Modern carburettor with integrated accelerator pump for trouble-free quick engine start
  • Solid engine protection casing
  • Standard engine equipment: automatic oil alert system with LED warning light
  • Additional handle for easy transport and loading
  • Tamper shoe made of high quality synthetic material with integrated steel plate – option: wear and tear steel plate protection on both sides
  • Fuel reservoir with extended volume and integrated filter
  • Convenient transport device with centring
  • Hour meter with engine speed indicator
  • Additional rolls for easy loading and unloading
  • Improved forward motion thanks to lower centre of gravity and fine tuned machine design
  • Robust gear box housing
  • Innovative spring assembly for a compact design of the spring leg
